Intel RealSense : Depth Camera D435i 3D 인식 AI 비전 로보틱스 카메라

출고까지 2~3일 소요

706,300원

(VAT 별도)

제품번호
EN00002573
브랜드명
RealSense
제조사
Intel
M.O.Q
1
평균발송일
약 3일
포장단위
판매단위
1
배송비
3,000 (60,000원 이상 무료배송)

출고까지 2~3일 소요

수량

총 주문 금액

706,300원

(VAT 포함) 776,930원

함께 구매한 상품들

다른 구매자들이 함께 구매한 상품을 만나보세요.

상품상세정보

Intel® RealSense™ Depth Camera D435i

Details

Intel® RealSense™ Depth Camera D435i combines the depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU). For great scans, an IMU provides an extra set of data allowing for better dense reconstruction. Alternately, in robotics, the Robotic Operating System (ROS) takes this input for your robot so your can understand its position in the world.

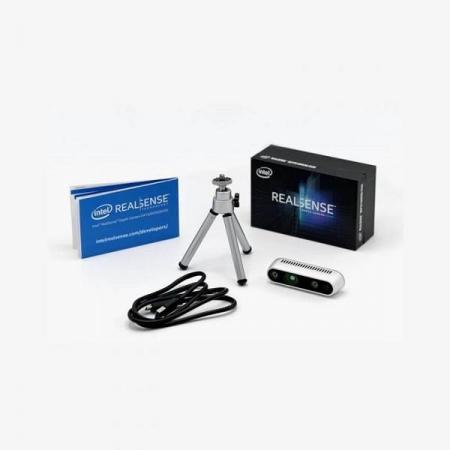

The Intel RealSense D435i includes:

A BMI055 inertial measurement unit.
The Intel RealSense SDK 2.0 which provides a depth and IMU data stream.
IMU Data that is time stamped to align with depth data as needed.
Desktop tripod.
USB-C* cable.

For more information regarding Intel® RealSense™ Depth Cameras and Intel® RealSense™ technology, go to intelrealsense.com

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/.

WARNING This product can expose you to Antimony oxide (Antimony trioxide), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Tech specs

Inertial measurement unit	BMI055
Use Environment	Indoor/Outdoor
Depth Technology	Active IR stereo
Main Intel® RealSense™ component	- Intel® RealSense™ Vision Processor D4 - Intel® RealSense™ module D430
Depth Field of View (FOV) (Horizontal × Vertical × Diagonal)	86° x 57° (±3)°
Depth Stream Output Resolution	Up to 1280 x 720
Depth Stream Output Frame Rate	Up to 90 fps
Minimum Depth Distance (Min-Z)	0.1 m
Sensor Shutter Type	Global Shutter
Maximum Range	Approx. 10 meters; Varies depending on calibration, scene, and lighting condition
RGB Sensor Resolution and Frame Rate	1920 x 1080 at 30 fps
RGB Sensor FOV (Horizontal x Vertical x Diagonal)	69.4° x 42.5° x 77° (+/- 3°)
Camera Dimension (Length x Depth x Height)	90 mm x 25 mm x 25 mm
Connectors	USB-C* 3.1 Gen 1
Mounting Mechanism	- One 1/4-20 UNC thread mounting point - Two M3 thread mounting points
