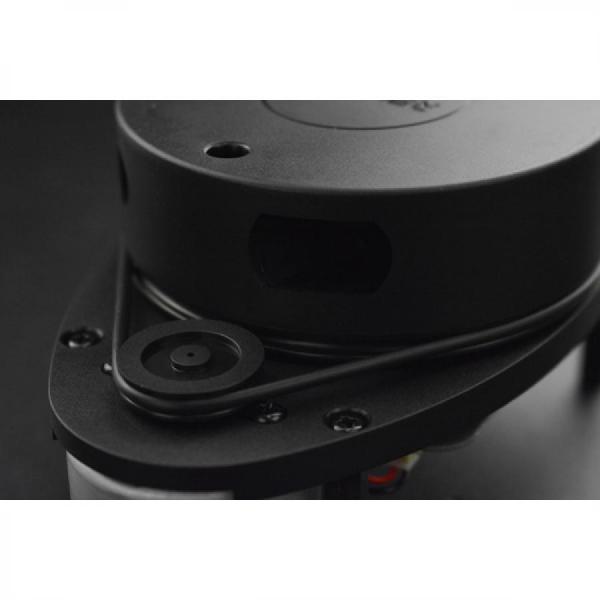

SLAMTEC RPLIDAR : A1M8-R6 360도 12m 거리측정 2D LiDAR 센서

142,800원

(VAT 별도)

제품번호
EN00002494
브랜드명
SLAMTEC
제조사
SLAMTEC
M.O.Q
1
평균발송일
약 3일
포장단위
판매단위
1
배송비
3,000 (60,000원 이상 무료배송)

수량

총 주문 금액

142,800원

(VAT 포함) 157,080원

함께 구매한 상품들

다른 구매자들이 함께 구매한 상품을 만나보세요.

상품상세정보

SLAMTEC RPLIDAR A1M8-R6 - 360도 레이저 스캐닝 라이다 12m

Introduction

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360 degree scan within 12-meter range (6-meter range of A1M8-R4 and the belowing models).

The produced 2D point cloud data can be used in mapping, localization and object/environment modeling.

RPLIDAR A1's scanning frequency reached 5.5 hz when sampling 1450 points each round. And it can be configured up to 10 hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system.

It can work excellent in all kinds of indoor environment and outdoor environment without direct sunlight exposure.

RPLIDAR A1 is based on laser triangulation ranging principle and uses high-speed vision acquisition and processing hardware developed by Slamtec.

The system measures distance data in more than 8000 times per second.

RPLIDAR A1M8 - 360 Degree Laser Triangulation Ranging Principle

360 Degree Omnidirectional Laser Range Scanning

The core of RPLIDAR A1 runs clockwise to perform a 360-degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.

RPLIDAR A1M8-R6 360-degree omnidirectional laser range scanning

The sample rate of LIDAR directly decides whether the robot can map quickly and accurately.

RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times,

Comparison under different conditions

10Hz 8000 Points vs 10Hz 4000 Points vs 5Hz 2000 Points

RPLIDAR A1M8 - 360 Degree Laser 10Hz 8000 Points

OPTMAG Original Design

Most traditional non-solid LIDARs use slip ring to transfer power and data information, however, they only have thounds of hours of life due to mechanical wearing out.

Slamtec has integrated the wireless power and optical communication technology to self-design the OPTMAG technology, which breakouts the life limitation of traditional LIDAR system.

It fixes the electrical connecttion failure caused by the physical wearing out so as to prolong the life-span.

RPLIDAR A1M8 - 360 Degree Laser OPTMAG Original Design

Configurable Scan Rate from 2-10Hz

Users can adjust the scan rate by alternating the motor PWM signal

Ideal for Robot Navigation and Localization

RPLIDAR is the designed sensor for applying SLAM algorithm

RPLIDAR A1M8 - 360 Degree Laser scan rate:5.5Hz, resolution:0.2%

With the scan rate set as 5.5Hz and the resolution is 0.2% percent of the actual distance

Plug and Play
